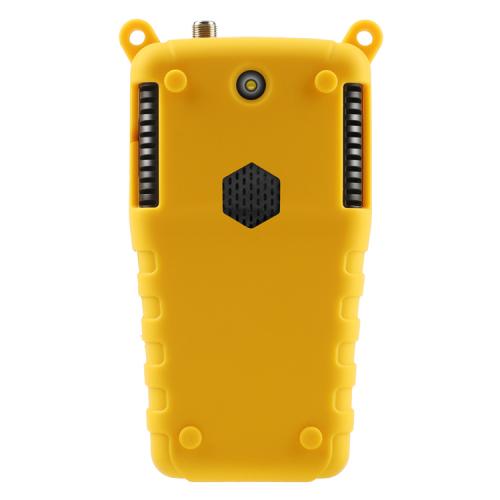

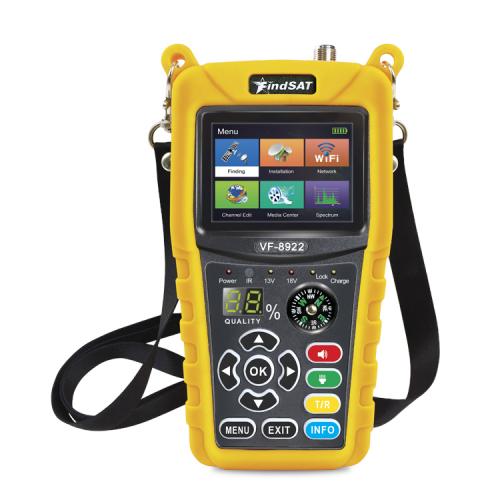

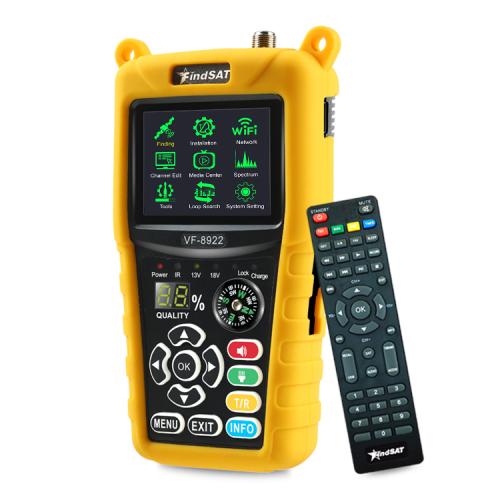

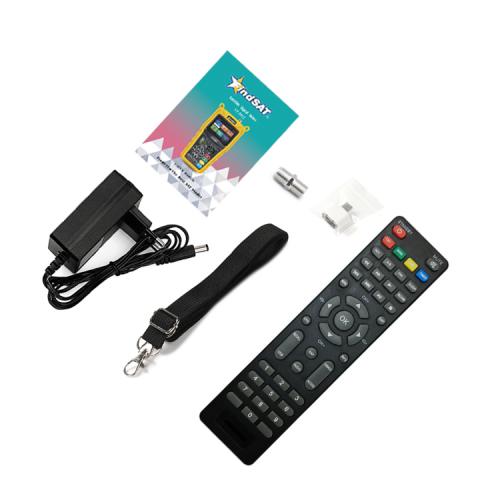

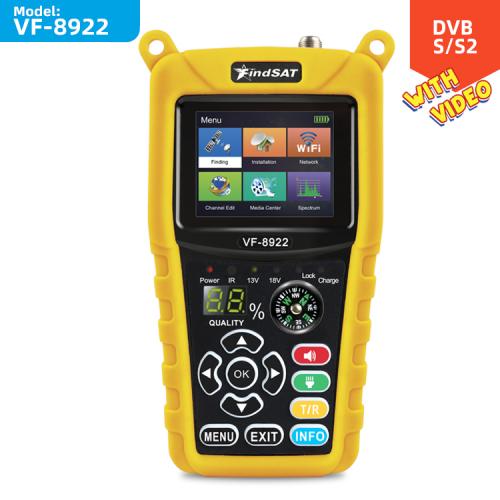

FindSAT VF8922 – Digital Satellite Signal Meter

FindSAT VF8922 – Digital Satellite Signal Meter
  • Измервателни уреди
  • Findsat
  • Available colors:
99.00€ / 193.63лв
Info:

The FindSAT VF8922 is a multifunctional digital satellite meter designed for satellite dish alignment, signal testing and precise positioning. It supports DVB-S and DVB-S2 standards and MPEG-2/MPEG-4 video formats. The 2.4-inch colour LCD display allows users to monitor signal parameters and view television programmes.

The built-in spectrum analyser makes it easier to identify and tune satellite signals. The meter supports motorised satellite dishes, Unicable systems and various switching protocols. Its built-in compass, audible signal indication and LED lighting help simplify installation and on-site adjustments.

Key Features

  • 2.4-inch colour LCD display with 320 × 240 resolution
  • DVB-S and DVB-S2 support
  • MPEG-2 and MPEG-4 compatibility
  • Built-in spectrum analyser
  • Television programme playback on the display
  • Measurement of signal strength, signal quality, BER, PWR and SNR
  • Support for DiSEqC 1.0, 1.1, 1.2 and USALS
  • Control of motorised satellite dishes
  • Unicable, SCR and DCSS LNB support
  • Two built-in menu interfaces
  • Loop Search function for transponder searching
  • Built-in compass and power switch
  • Audible indication of signal level and lock
  • LNB short-circuit protection with status indication
  • Built-in 2500 mAh Li-ion battery
  • LED lighting and backlit keypad
  • Ability to add, edit and delete transponders
  • Software updates via USB

Technical Specifications

  • Brand: FindSAT
  • Model: VF8922
  • Type: Digital satellite signal meter
  • Display: 2.4-inch colour LCD
  • Resolution: 320 × 240 pixels
  • Supported standards: DVB-S/DVB-S2
  • Video formats: MPEG-2/MPEG-4
  • Frequency range: 950–2150 MHz
  • Input impedance: 75 Ω
  • LNB control: 13/18 V and 22 kHz
  • Protocols: DiSEqC 1.0/1.1/1.2, USALS
  • Unicable support: SCR/DCSS
  • Battery: Li-ion, 2500 mAh
  • Charging power supply: 12 V / 2 A
  • Update interface: USB
  • Additional functions: Spectrum analysis, compass, LED lighting and audible signal indication

  • Made in: China
  • Warranty: 24 months
