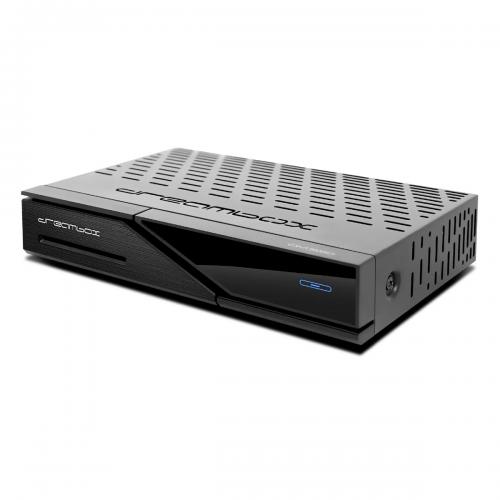

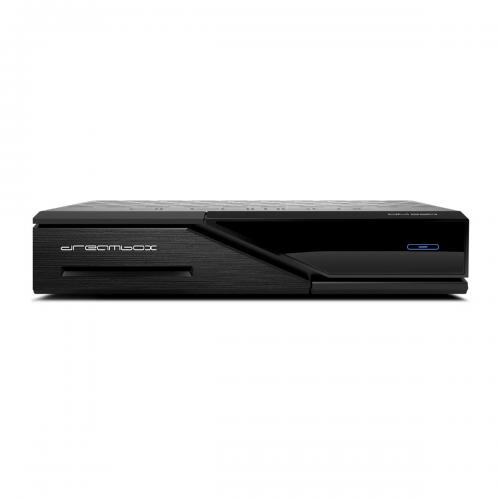

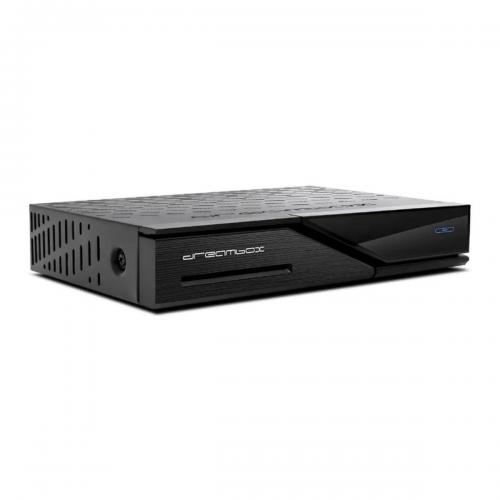

Dreambox DM520 HD is a compact HD satellite receiver designed for users who value reliable TV reception, flexible software and network connectivity. It runs Dreambox OS, based on Linux and Enigma2, and supports DVB-S/S2 satellite reception.
The receiver features a Broadcom processor delivering 2000 DMIPS, 512 MB RAM and 512 MB Flash memory. It supports Full HD video decoding, including H.265/HEVC, and provides HDMI 1.4a, two USB 2.0 ports, LAN Ethernet and an optical S/PDIF digital audio output.
Key Features
- HD satellite receiver with DVB-S/S2 tuner
- Linux operating system with Dreambox OS / Enigma2
- Broadcom processor delivering 2000 DMIPS
- H.265/HEVC decoding with Full HD output
- MPEG-2 and H.264 video decoding
- 512 MB RAM and 512 MB Flash memory
- HDMI 1.4a digital audio and video output
- Two USB 2.0 ports
- 10/100 Mbps LAN Ethernet
- Optical S/PDIF digital audio output
- Built-in Dreamcrypt smart card reader
- DiSEqC 1.0, 1.1, 1.2 and USALS support
- Electronic Programme Guide (EPG)
- Automatic channel scanning
- Web interface for control via computer or smartphone
- Wireless network connectivity using an optional compatible Wi-Fi adapter
Technical Specifications
| Brand | Dreambox |
| Model | DM520 HD / DM520 S2 |
| Receiver type | HD digital satellite receiver |
| Tuner | 1 × DVB-S2 |
| Operating system | Dreambox OS / Linux, Enigma2 |
| Processor | Broadcom BCM73625, 2000 DMIPS |
| RAM | 512 MB |
| Flash memory | 512 MB |
| Video decoding | MPEG-2, H.264/AVC, H.265/HEVC |
| Maximum video resolution | Full HD up to 1920 × 1080 |
| HDMI | HDMI 1.4a |
| USB interfaces | 2 × USB 2.0 |
| Service interface | Mini-USB |
| Network connection | Ethernet RJ-45, 10/100 Mbps |
| Digital audio output | Optical S/PDIF |
| Card reader | 1 × Dreamcrypt smart card reader |
| Antenna control | DiSEqC 1.0, 1.1, 1.2 and USALS |
| Wireless connectivity | Via an optional compatible Wi-Fi adapter |
| Dimensions (W × D × H) | 260 × 150 × 45 mm |
Functions and Features
- Dreambox OS and Enigma2: a flexible Linux platform that supports configuration and expansion through compatible software.
- HD and Full HD: reception and playback of compatible HD television channels.
- H.265/HEVC: hardware video decoding in this format up to Full HD resolution.
- Network management: access the web interface to control the receiver over a local network.
- EPG: electronic programme information supplied by the broadcaster.
- Channel scanning: automatic and manual satellite channel searches.
- Multimedia features: playback and network functions depending on the installed software.
- Sat>IP: network functions subject to the software configuration.

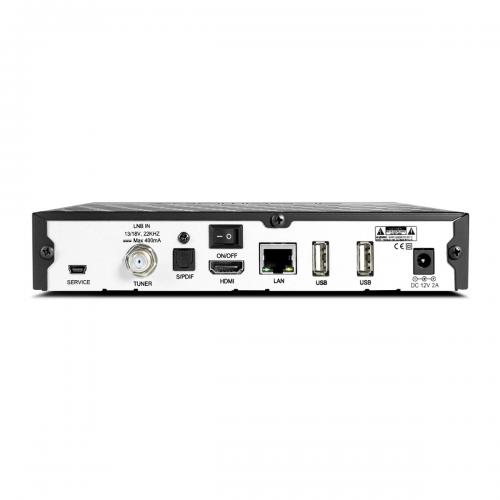

Interfaces and Connectivity
- LNB IN: satellite dish input.
- HDMI: digital connection to a TV or monitor.
- USB 2.0: connection for compatible external devices.
- Mini-USB: service connection for software maintenance and recovery.
- LAN Ethernet: wired connection to a router or local network.
- S/PDIF: optical digital audio output for compatible audio equipment.
Suitable For
- DVB-S/S2 satellite TV systems.
- Users who prefer Linux and Enigma2 receivers.
- Installations using DiSEqC switches or motorised satellite dishes.
- Users who want network-based control via a computer or smartphone.
- HD television systems using HDMI connectivity.
Package Contents
- Dreambox DM520 HD satellite receiver with DVB-S2 tuner

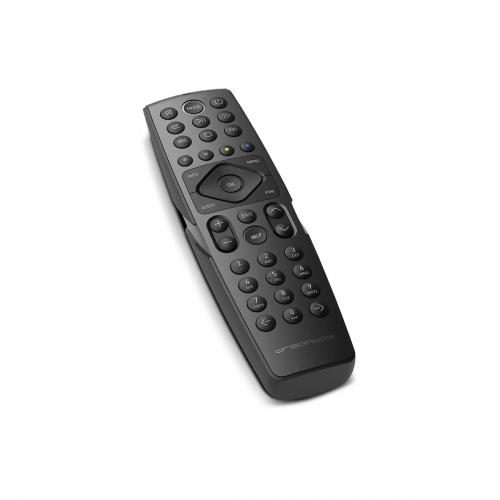

- RC10 infrared remote control
- HDMI cable
- Power adapter and cable
- Quick-start guide
Remote control batteries are sold separately.
Important Information
This is the DM520 S2 satellite version with one DVB-S2 tuner. It is not a Combo model and does not include a built-in DVB-T2 or DVB-C tuner. Wi-Fi is not built in and requires a compatible external adapter. Recording, multimedia and additional internet functions depend on the installed software and connected devices.
- Made in Germany
- Warranty: 24 months
