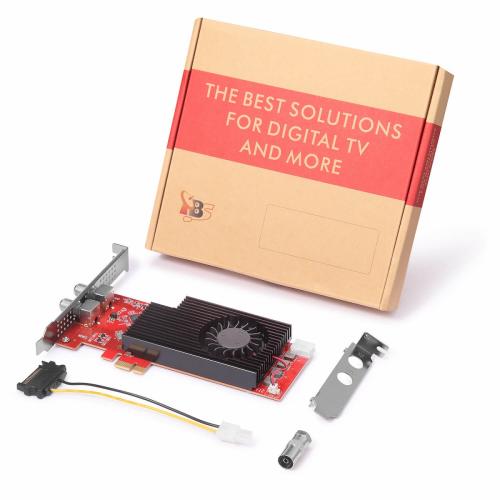

TBS6032 – 16-QAM DVB-C Modulator PCIe Card

DVB-C Модулатори
TBS
Available colors:

976.57€ / 1910.00лв

Add: Add to Cart

Info:

The TBS6032 is a professional PCI Express modulator card designed for digital cable television headends and distribution systems. It enables the distribution of digital TV content over coaxial cable networks using 16 independent DVB-C output frequencies.

The card converts compatible digital TV and IP content into DVB-C signals. It is suitable for cable TV operators, hotels, hospitals, residential buildings and other installations requiring reliable distribution of multiple television channels over an existing coaxial infrastructure.

Key Features

16 DVB-C QAM output frequencies for high-capacity digital cable TV distribution.
Multiple input sources, including DVB services, IP streams, local transport stream files and video encoders.
IP stream support via HTTP, UDP, HLS and SRT, depending on the software used.
PCI Express interface for installation in a compatible computer or server.
Kylone software management with a web interface for configuring the modulators.
Designed for professional cable TV networks and digital content distribution systems.

Technical Specifications

Model: TBS6032
Device type: DVB-C QAM modulator card
Number of output frequencies: 16
Output standard: DVB-C, ITU-T J.83 Annex A
Frequency range: 100–858 MHz
Symbol rate: 1.0–7.14 Msym/s
Modulation: 16, 32, 64, 128 and 256 QAM
Maximum bitrate: Up to 46 Mbps per frequency
Output level: -5 to -37 dBm
Input sources: DVB-S/S2/S2X, DVB-T/T2, DVB-C, ISDB-T, ATSC, IP streams, local TS files and video encoders
Interface: PCIe x1, compatible with PCIe x4/x8/x16 slots
Operating system: Linux
Linux kernel requirement: Version 4.15 or later
Power consumption: 9.6 W
Operating temperature: -40°C to +85°C
Card dimensions: 155 × 68.9 mm
Weight: 160 g

Applications

The TBS6032 is designed to convert compatible digital television content and IP streams into DVB-C signals for distribution over coaxial cable networks. A compatible Linux server and suitable software are required to configure the card and supply content to the modulators.
