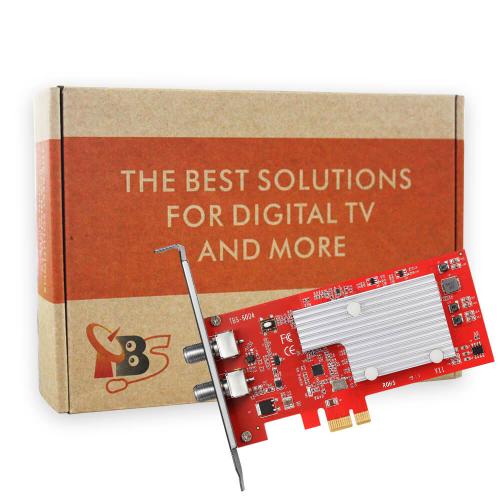

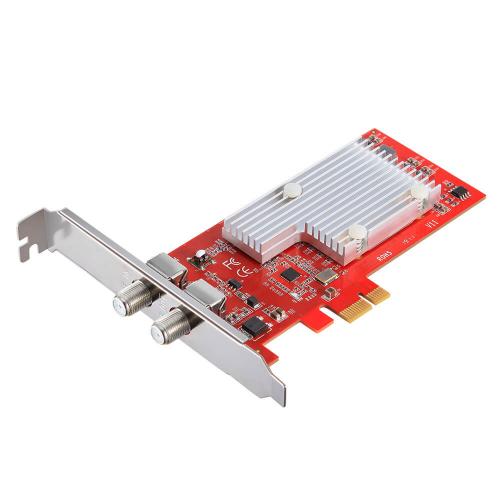

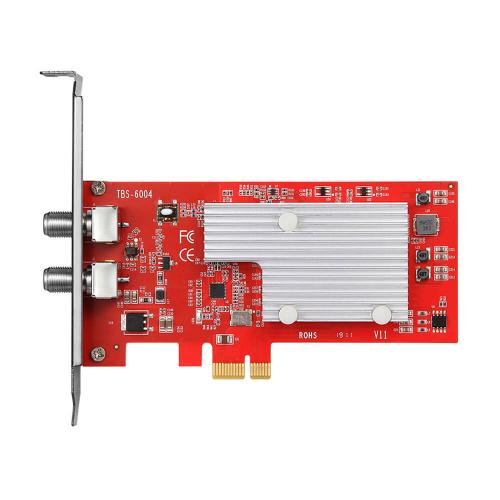

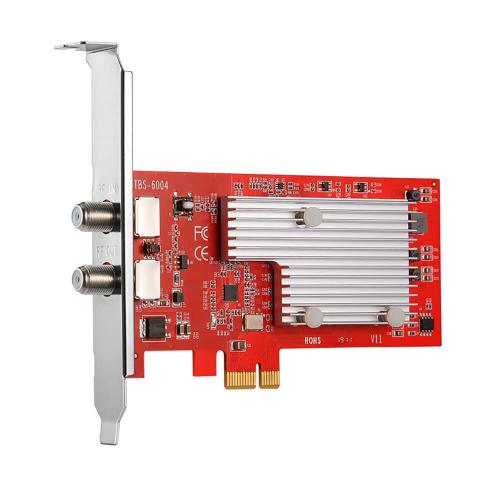

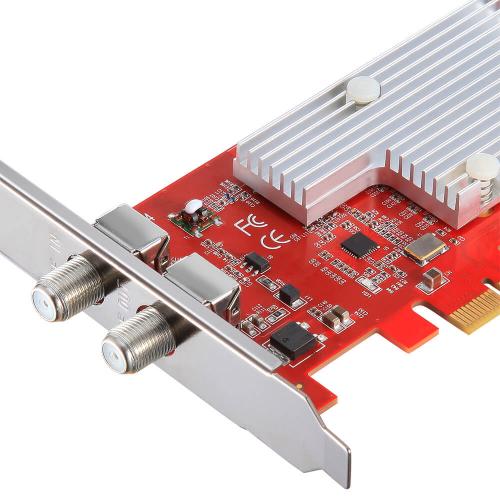

TBS6004 – DVB-C Quad QAM PCIe Modulator with 4 Outputs

DVB-C Модулатори
TBS

874.31€ / 1710.00лв

Add: Add to Cart

Info:

The TBS6004 is a professional PCI Express card featuring four DVB-C QAM modulators, designed for digital cable television headends and distribution systems. It converts digital transport streams from compatible satellite and terrestrial receivers, IP networks or local files into DVB-C signals for distribution over a coaxial cable network.

The card features four independent output frequencies and a loop-in interface for integrating existing DVB-C signals. This makes it suitable for combining multiple content sources into a single digital cable television network. The TBS6004 is ideal for hotels, hospitals, dormitories, cable operators and other professional TV distribution installations.

Key Features

Four QAM modulators: Generates DVB-C signals on four frequencies.
DVB-C output: Supports ETSI EN 300 429 / ITU-T J.83 Annex A/C.
Multiple input sources: Supports transport streams from compatible DVB tuners, IP networks and local SPTS files.
IP streaming: Supports transport streams over HTTP, UDP and RTP.

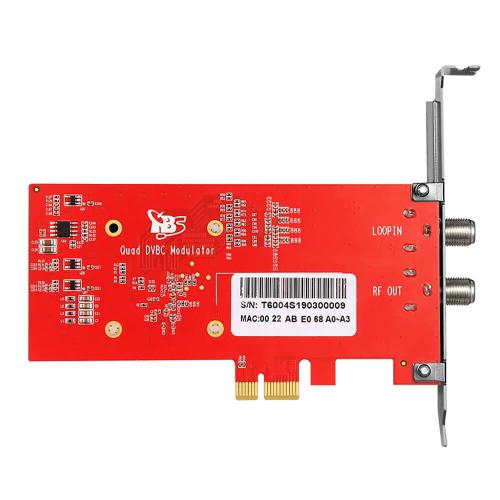

Loop-in interface: Allows existing DVB-C signals to be integrated into the distribution system.
QAM modulation: Supports 16-QAM, 32-QAM, 64-QAM, 128-QAM and 256-QAM.
High capacity: Up to 53 Mbps per frequency at 256-QAM and a symbol rate of 7.2 Msym/s.
PCI Express interface: Compatible with PCIe x1, x4, x8 and x16 slots.
Linux support: Designed for Linux and compatible modulator management software.

Technical Specifications

Model	TBS6004
Device type	PCIe DVB-C Quad QAM modulator
Number of modulators	4
Output standard	DVB-C (ETSI EN 300 429 / ITU-T J.83 Annex A/C)
Frequency range	100–1000 MHz
Symbol rate	2–7.2 Msym/s
Supported modulation	16-QAM, 32-QAM, 64-QAM, 128-QAM, 256-QAM
Maximum bitrate	Up to 53 Mbps per frequency at 256-QAM
Input sources	DVB-S/S2, DVB-T/T2, ISDB-T, ATSC, IP streams and local SPTS files
Supported IP protocols	HTTP, UDP, RTP
Interface	PCI Express x1/x4/x8/x16
Power supply	12 V DC
Power consumption	9 W
Operating temperature	-40°C to 85°C
Card dimensions	130 × 68.7 mm
Operating system	Linux with compatible drivers and software

Applications

Digital cable television headend systems.
Converting satellite TV programmes into DVB-C signals.
Distributing IPTV streams over coaxial cable networks.
Combining multiple digital sources into a single cable television network.
TV distribution systems for hotels, hospitals, dormitories and residential complexes.
Professional cable networks and digital television distribution installations.
