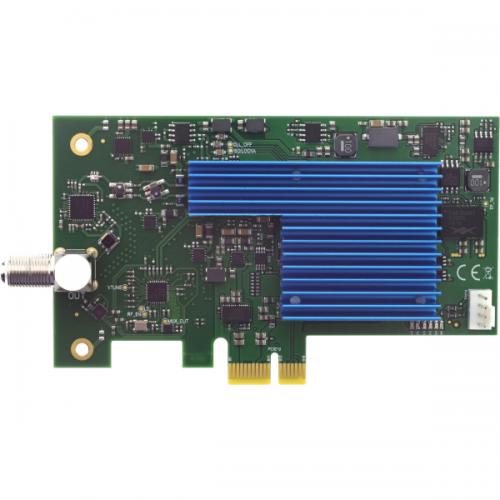

The Digital Devices RESI DVB-C FSM 24 (V5) is a professional PCI Express modulator card designed for high-capacity digital cable television headends. It enables the distribution of multiple digital TV services over coaxial cable networks using DVB-C modulation.
With support for 24 DVB-C QAM channels, the card is designed for large-scale cable TV distribution systems used by cable operators, hotels, hospitals, residential complexes and other professional installations.
Key Features
- 24 DVB-C QAM channels for high-density digital television distribution.
- Multiple QAM modulation modes for flexible network configuration.
- Wide frequency range suitable for professional DVB-C cable networks.
- PCI Express interface for installation in a compatible computer or server.
- Designed for professional headend systems and multi-channel television distribution.
- Suitable for integration into compatible Linux-based broadcast systems.
Technical Specifications
- Manufacturer: Digital Devices
- Model: RESI DVB-C FSM 24 (V5)
- Device type: DVB-C QAM modulator card
- Number of QAM channels: 24
- Output standard: DVB-C
- Interface: PCI Express
- Operating system: Linux, subject to compatible drivers and control software
Applications
The RESI DVB-C FSM 24 (V5) is intended for professional digital cable TV headends requiring a high number of DVB-C channels in a single PCI Express card. It can be integrated into compatible systems for distributing television services throughout buildings and cable networks.
A compatible computer or server and suitable control software are required to configure the modulators and provide the transport streams.
Package Contents
- Digital Devices RESI DVB-C FSM 24 (V5) modulator card
- Made in: Germany
- Warranty: 24 months
