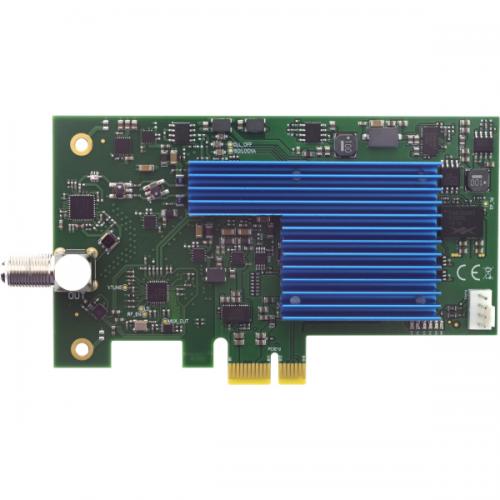

The Digital Devices RESI DVB-C FSM 8 (V5) is a professional PCI Express modulator card designed for digital cable television systems. It enables digital television content to be converted into DVB-C signals for distribution over coaxial cable networks.
The card features 8 DVB-C QAM modulators, allowing the implementation of multi-channel digital TV distribution systems. It is suitable for cable TV operators, hotels, hospitals, residential complexes and other professional installations.
Key Features
- 8 DVB-C QAM modulators for multi-channel digital television distribution.
- QAM modulation support for flexible cable network configuration.
- 114–858 MHz frequency range for use in various DVB-C networks.
- PCI Express interface for installation in a compatible computer or server.
- Suitable for professional DVB-C headend systems.
- Linux and Windows support with compatible drivers and control software.
Technical Specifications
- Manufacturer: Digital Devices
- Model: RESI DVB-C FSM 8 (V5)
- Device type: DVB-C QAM modulator card
- Number of modulators: 8
- Output standard: DVB-C
- Frequency range: 114–858 MHz
- Interface: PCI Express
- Operating systems: Linux and Windows, subject to compatible drivers and software
Applications
The DD RESI DVB-C FSM 8 (V5) is designed for professional digital cable television systems. It generates DVB-C signals for distribution to televisions and receivers over existing coaxial infrastructure.
Operation requires a compatible computer or server, together with suitable software for configuring the modulators and supplying the transport streams.
Package Contents
- Digital Devices RESI DVB-C FSM 8 (V5) modulator card
- Made in: Germany
- Warranty: 24 months
